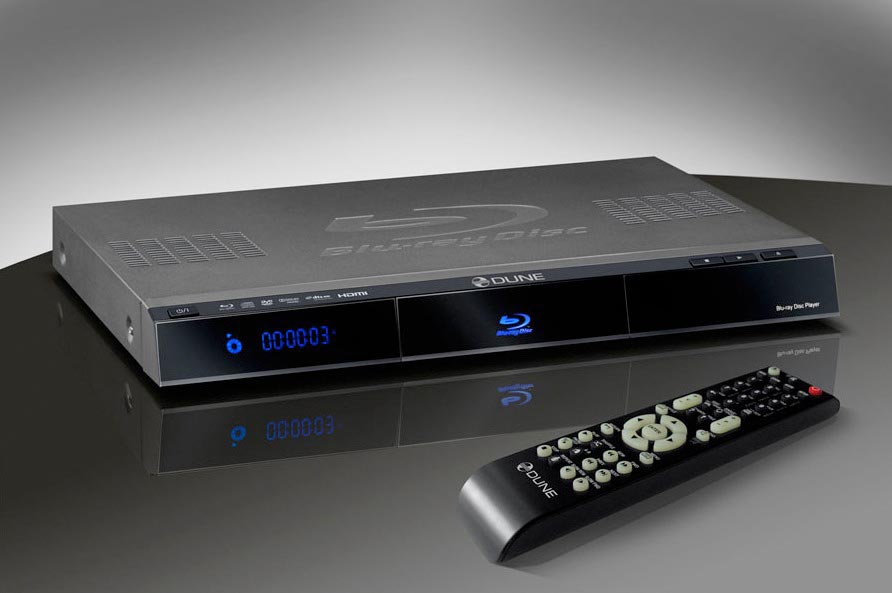

Dune BD Prime, Ethernet 100 MB/s

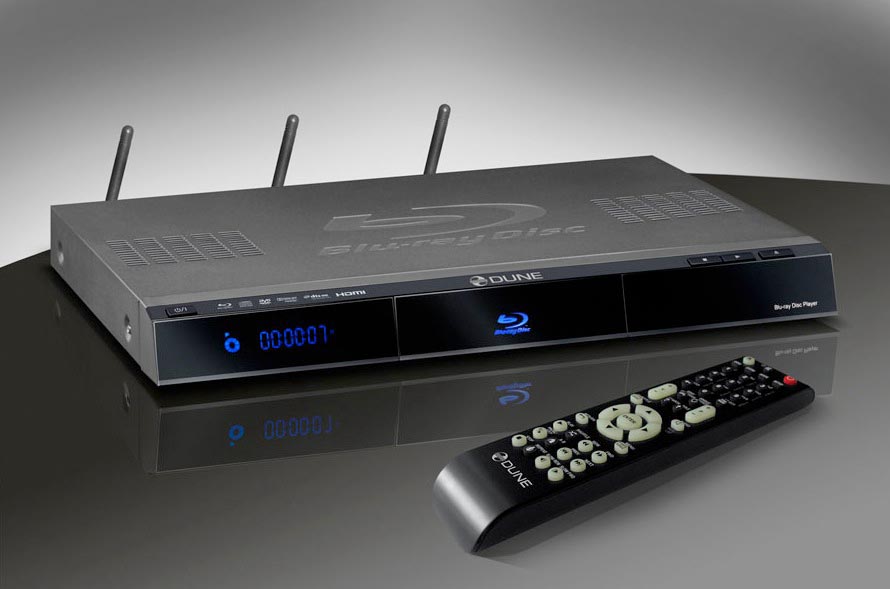

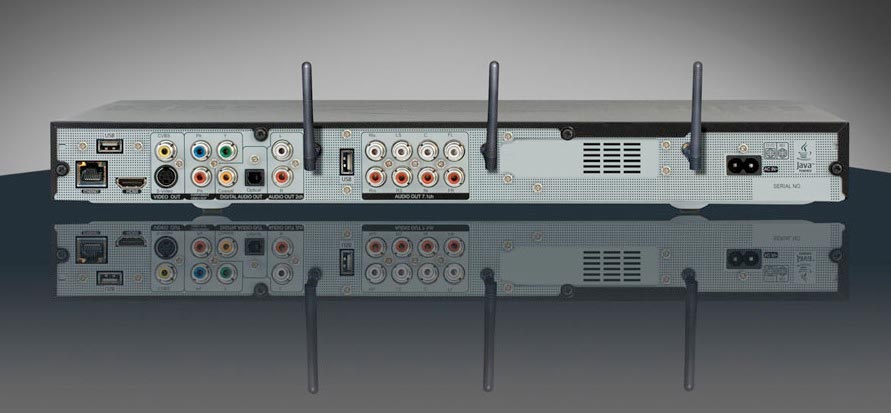

Dune BD Prime, Ethernet 100 MB/s + Wi-Fi 802.11n
Dune BD Prime Ethernet 100MB/s + Gigabit Ethernet 1 GB/s

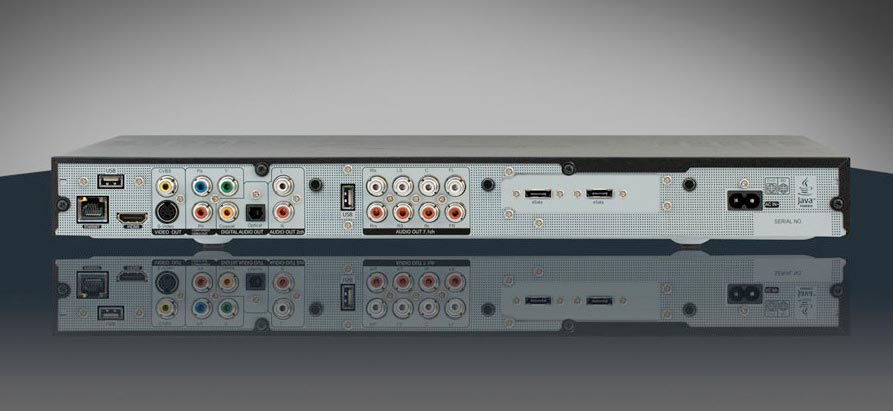

Dune BD Prime, Ethernet 100 MB/s + 2 x eSATA
| Für mehr Informationen und Preise hier klicken! |
|
|
PDF Downloads
Applications:
Dune BD Prime is to date the most affordable multifunctional Full HD (1080p) solution with Blu-Ray format support.
Available Models:
- Dune BD Prime, 100MB/s Ethernet
- Dune BD Prime, 100MB/s Ethernet + Wi-Fi 802.11n
- Dune BD Prime, 100MB/s Ethernet + Ethernet 1000 Mb/s
- Dune BD Prime, 100MB/s Ethernet + 2 x eSATA
Playback:
- Blu-Ray discs (Profile 1.1/2.0)
- DVD-Video discs
- Files on Blu-Ray (BD-R, BD-RE), DVD (DVD-ROM, DVD+-R, DVD+-RW), CD (CD-ROM, CD-R, CD-RW) discs
- Files on USB drives (USB HDD, USB flash, USB card readers etc)
- Files in local network from PC or NAS (NFS and SMB)
- IPTV (free channels UDP/RTP MPEG-TS, H.264/MPEG-2)
- Internet radio (HTTP/MP3)
The player will support a proprietary implementation of full VoD and HV system called "Dune HD", planned to be launched in future. This system is based on SecureMedia solution, certified by all the Hollywood majors.
- File formats: MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, QT, ASF, WMV, DVD-ISO, VIDEO_TS.
- Video codecs: MPEG2, MPEG4, DivX, XVID, WMV9, VC1, H.264.
- Audio codecs: AC3 (DD), EAC3 (DD+), DTS, MPEG 1/2/3, AAC, LPCM, WMA, WMAPro, Dolby True HD, DTS HD HRA, DTS HD MA (HD-formats for Blu-Ray playback only).
- Subtitle formats: Plain text, SSA/AAS, SRT, VOB.
Network
- Browsing, copying and direct playback of files from PC and NAS in local network (NFS and SMB protocols).
- attached storage from local network.
- Playback of Internet radio (HTTP/MP3).
- Playback of IPTV (free channels UDP/RTP MPEG-TS, H.264/MPEG-2).
- NAS function: FTP and SMB servers for accessing player's H.264/MPEG-2).
- Bit-Torrent client for digital content download from Internet.
- Web browser (based on the same engine as used in Mozilla Firefox) for browsing arbitrary Internet sites (with limited possibilities and performance).
Hardware
the most modern design of Dune HD Center includes - Sigma Designs 8634 SoC
- 384 MB of RAM, 64 MB flash and 1GB of NAND flash memory for fastest Java support on the latest and future Blu-Ray disks (Profile 2.0).
- HDMI 1.3 for ultimate HD video and HD audio performance.
- Optical and coaxial digital and 7.1 analogue audio output.

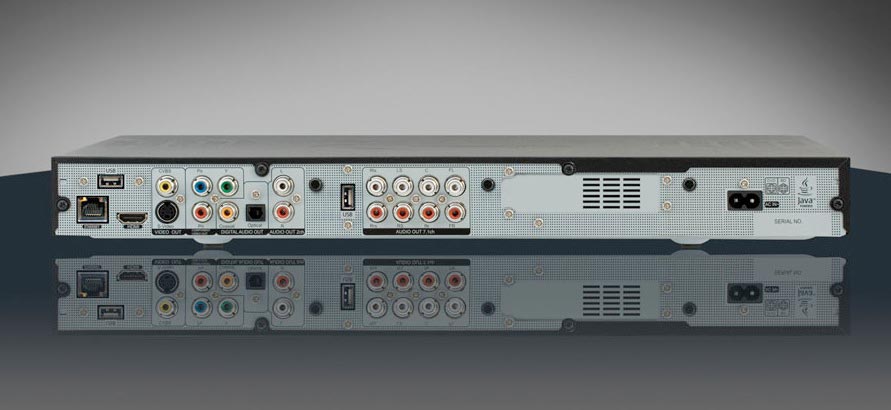

- Composite, component, S-Video video output.
- Three USB 2.0 ports for connecting external AV sources.
- Ethernet 100 Mb/s and Wi-Fi up to 300 Mb/s (optional).
Dimensions
- With legs: 430mm (width) x 270mm (depth) x 50mm (height)
- Without legs: 430mm (width) x 270mm (depth) x 42mm (height)
Blu-Ray video playback support
DVD-Video playback support:
- DVD menu navigation is supported.
- Sources:
- Commercial DVD-Video disks:
- Internal DVD drive.
- USB DVD drives.
- ISO images, VIDEO_TS folders:
- Internal DVD drive.
- USB mass storage devices (USB HDD, USB flash memory).
- USB DVD drives.
- NFS network folders.
- SMB network folders.
Media files playback support:
- Sources:
- Internal DVD drive.
- USB mass storage devices (USB HDD, USB flash memory).
- USB DVD drives.
- NFS network folders.
- SMB network folders.
- HTTP URLs (limited support).
- Containers:
- MPEG (MPEG-TS, MPEG-PS, VOB, M2TS) (typical file extensions: .MPG, .TS,
- .M2TS, .TP, .VOB).
- AVI (typical file extensions: .AVI).
- MOV, MP4 (typical file extensions: .MOV, .MP4, .QT).
- MKV (typical file extensions: .MKV).
- ASF (typical file extensions: .ASF, .WMV).
- DVD-ISO, VIDEO_TS (DVD-Video playback, including DVD menu support).
- Raw video.
- Raw audio (typical file extensions: .WAV, .MP3).
- Video codecs:
- MPEG2.
- MPEG4.
- DivX.
- XVID.
- WMV9.
- VC1.
- H.264.
- Audio codecs:
- AC3 (DD).
- EAC3 (DD+).
- DTS.
- MPEG (layers 1/2/3).
- AAC.
- LPCM.
- WMA.
- WMAPro.
- Embedded subtitle formats:
- In MKV: plain text, SSA/ASS.
- In MP4: VOB.
- External subtitle formats:
- External audio streams:
IPTV:
- Protocols:
- Multicast UDP (raw).
- Multicast RTP.
- Format:
- MPEG-TS container.
- MPEG2 video codec (SD and HD resolutions).
Extended set of supported video modes:
- HDMI:
- 480i, 480p (60 Hz)
- 576i, 576p (50 Hz)
- 720p (50 Hz, 60 Hz)
- 1080i (50 Hz, 60 Hz)
- 1080p (24 Hz, 25 Hz, 30 Hz, 50 Hz, 60 Hz)
- 1024×768, 1280×1024, 1280×768, 1280×960, 1360×768, 1366×768,
- 1400×1050, 1440×900, 1600×1200, 1680×1050, 1920×1200 (60 Hz)
- Component:
- PAL
- NTSC
- 480p (60 Hz)
- 576p (50 Hz)
- 720p (24 Hz, 25 Hz, 30 Hz, 50 Hz, 60 Hz)
- 1080i (48 Hz, 50 Hz, 60 Hz)
- 1080p (24 Hz, 25 Hz, 30 Hz, 50 Hz, 60 Hz)
- Composite:
- Note: some video modes may be not supported - it depends on the player mode, type of data being played back, and peculiarities of video hardware connected to the player.
