Dune HD Center
Full HD (1080p) A/V Network Streaming + Blu-Ray Player

Dune HD Center, 100MB/s Ethernet
Zum Vergrössern bitte die Bilder anklicken

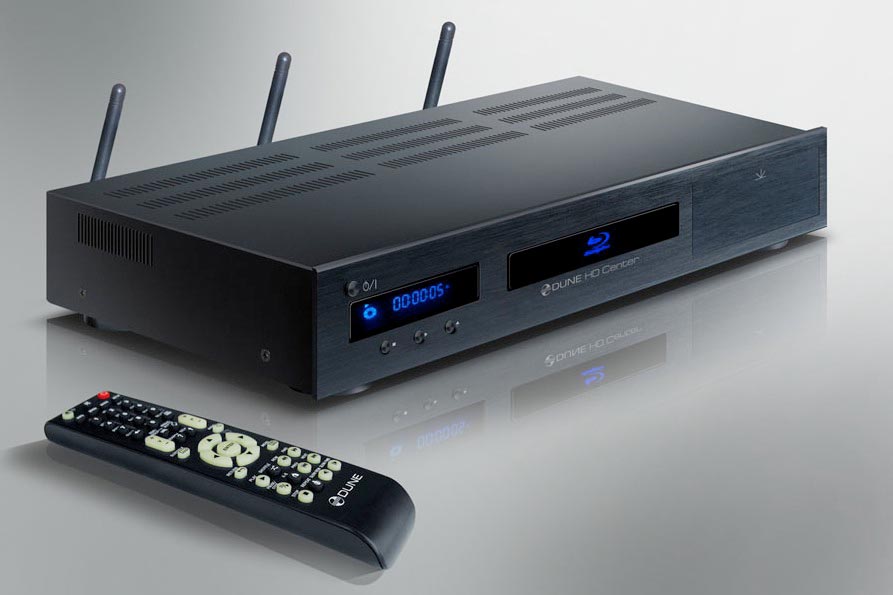

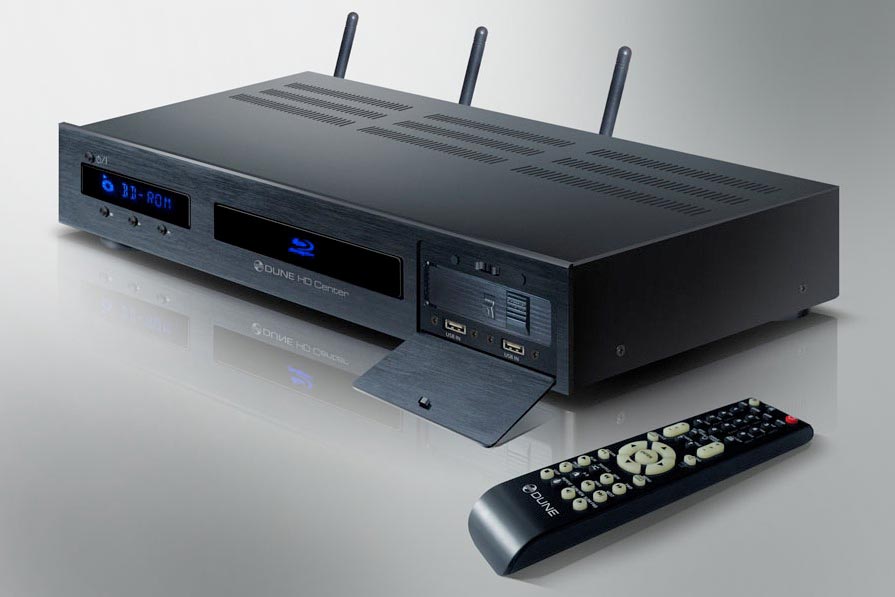

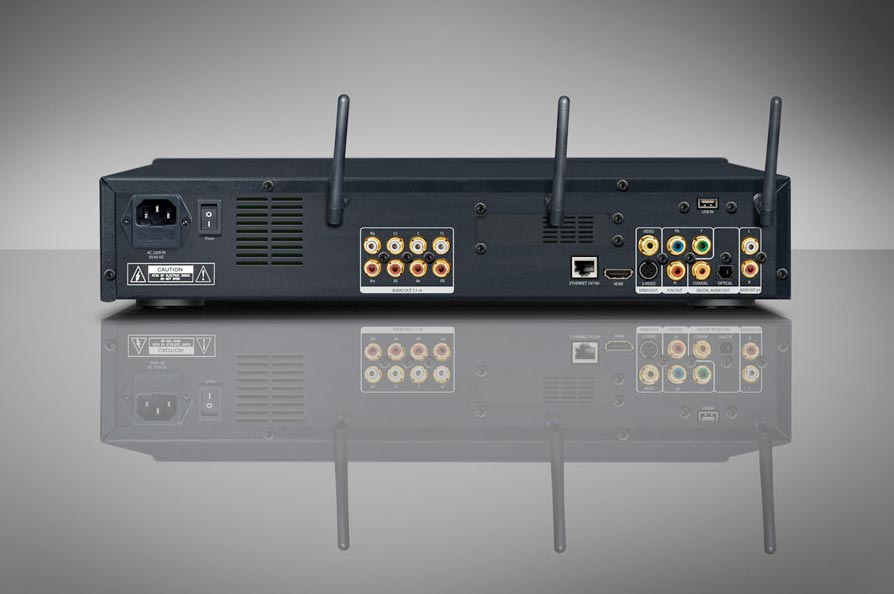

Dune HD Center, 100MB/S Ethernet + Wi-Fi 802.11n

Abbildung vergrössern

Abbildung vergrössern

Abbildung vergrössern

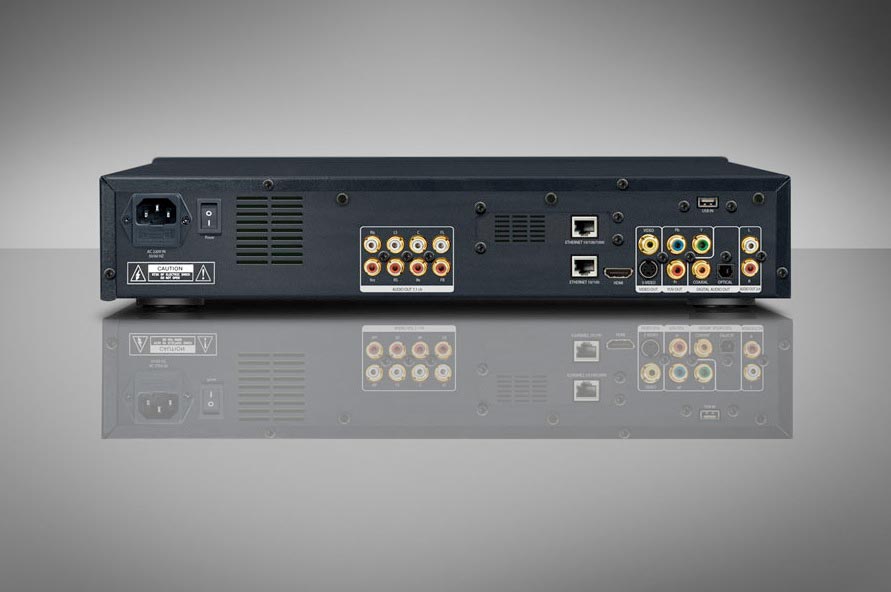

Dune HD Center, 100MB/s Ethernet + Gigabit Ethernet 1GB/s

Abbildung vergrössern

Abbildung vergrössern

Abbildung vergrössern

Dune HD Center, 100MB/s Ethernet + 2 x eSATA

Abbildung vergrössern

Abbildung vergrössern

Abbildung vergrössern

Anwendung:
Dune HD Center is to date the most universal and powerful Full HD (1080p) solution with Blu-Ray support which has a power to be a true Center of any most modern home cinema system. With its intuitive user-friendly interface player provides literally all HD and SD video playback features applicable for home use.


Verfügbare Modelle:

  • Dune HD Center, 100MB/s Ethernet
  • Dune HD Center, 100MB/s Ethernet + Wi-Fi 802.11n
  • Dune HD Center, 100MB/s Ethernet + Gigabit Ethernet 1000 Mb/s
  • Dune HD Center, 100MB/s Ethernet + 2 x eSATA
  • Diverse interne Festplattenoptionen bis 2 TB


Playback:

  • Blu-Ray discs (Profile 1.1/2.0)DVD-Video discs
  • Files on Blu-Ray (BD-R, BD-RE), DVD (DVD-ROM, DVD+-R, DVD+-RW), CD (CD-ROM, CD-R, CD-RW) discs
  • Files on USB drives (USB HDD, USB flash, USB card readers etc)
  • Files in local network from PC or NAS (NFS and SMB)
  • IPTV (free channels UDP/RTP MPEG-TS, H.264/MPEG-2)
  • Internet radio (HTTP/MP3)


The player will support a proprietary implementation of full VoD and HV system called "Dune HD", planned to be launched in future. This system is based on SecureMedia solution, certified by all the Hollywood majors.

  • File formats: MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, QT, ASF, WMV, DVD-ISO, VIDEO_TS.
  • Video codecs: MPEG2, MPEG4, DivX, XVID, WMV9, VC1, H.264.
  • Audio codecs: AC3 (DD), EAC3 (DD+), DTS, MPEG 1/2/3, AAC, LPCM, WMA, WMAPro, Dolby True HD, DTS HD HRA, DTS HD MA (HD-formats for Blu-Ray playback only).
  • Subtitle formats: Plain text, SSA/AAS, SRT, VOB.


Network

  • Browsing, copying and direct playback of files from PC and NAS in local network (NFS and SMB protocols).
  • Attached storage from local network.
  • Playback of Internet radio (HTTP/MP3).
  • Playback of IPTV (free channels UDP/RTP MPEG-TS, H.264/MPEG-2).
  • NAS function: FTP and SMB servers for accessing player's H.264/MPEG-2).
  • Bit-Torrent client for digital content download from Internet.
  • Web browser (based on the same engine as used in Mozilla Firefox) for browsing arbitrary Internet sites (with limited possibilities and performance).


Hardware
the most modern design of Dune HD Center includes - Sigma Designs 8634 SoC

  • 384 MB of RAM, 64 MB flash and 1GB of NAND flash memory for fastest Java support on the latest and future Blu-Ray disks (Profile 2.0).
  • HDMI 1.3 for ultimate HD video and HD audio performance.
  • Optical, coaxial digital and 7.1 analogue audio output.
  • Composite, component, S-Video video output.
  • Three USB 2.0 ports for connecting external AV sources.Ethernet 100 Mb/s and Wi-Fi up to 300 Mb/s (optional).
  • Mobile rack with SATA Direct Link for fast and easy HDD exchange to support any audio and video collection on any number of hard discs w/o need to create expensive multi-disc NAS solutions. Any 3.5? SATA HDDs can be used.


Dimensions

  • 429mm (width) x 296mm (depth) x 94mm (height)

Blu-Ray video playback support

DVD-Video playback support:

  • DVD menu navigation is supported.
  • Sources:
    • Commercial DVD-Video disks:
    • Internal DVD drive.
      • USB DVD drives.
    • ISO images, VIDEO_TS folders:
      • Internal HDD.
      • Internal DVD drive.
      • USB mass storage devices (USB HDD, USB flash memory).
      • USB DVD drives.
      • NFS network folders.
      • SMB network folders.

Media files playback support:

  • Sources:
    • Internal HDD.
    • Internal DVD drive.
    • USB mass storage devices (USB HDD, USB flash memory).
    • USB DVD drives.
    • NFS network folders.
    • SMB network folders.
    • HTTP URLs (limited support).
  • Containers:
    • MPEG (MPEG-TS, MPEG-PS, VOB, M2TS) (typical file extensions: .MPG, .TS, .M2TS, .TP, .VOB).
    • AVI (typical file extensions: .AVI).
    • MOV, MP4 (typical file extensions: .MOV, .MP4, .QT).
    • MKV (typical file extensions: .MKV).
    • ASF (typical file extensions: .ASF, .WMV).
    • DVD-ISO, VIDEO_TS (DVD-Video playback, including DVD menu support).
    • Raw video.
    • Raw audio (typical file extensions: .WAV, .MP3).
  • Video codecs:
    • MPEG2.
    • MPEG4.
    • DivX.
    • XVID.
    • WMV9.
    • VC1.
    • H.264.
  • Audio codecs:
    • AC3 (DD).
    • EAC3 (DD+).
    • DTS.
    • MPEG (layers 1/2/3).
    • AAC.
    • LPCM.
    • WMA.
    • WMAPro.
  • Embedded subtitle formats:
    • In MKV: plain text, SSA/ASS.
    • In MP4: VOB.
  • External subtitle formats:
    • SRT.
  • External audio streams:
    • AC3.
    • DTS.

IPTV:

  • Protocols:
    • Multicast UDP (raw).
    • Multicast RTP.
  • Format:
    • MPEG-TS container.
    • MPEG2 video codec (SD and HD resolutions).

Extended set of supported video modes:

  • HDMI:
    • 480i, 480p (60 Hz)
    • 576i, 576p (50 Hz)
    • 720p (50 Hz, 60 Hz)
    • 1080i (50 Hz, 60 Hz)
    • 1080p (24 Hz, 25 Hz, 30 Hz, 50 Hz, 60 Hz)
    • 1024*768, 1280*1024, 1280*768, 1280*960, 1360*768, 1366*768, 1400*1050,
    • 1440*900, 1600*1200, 1680*1050, 1920*1200 (60 Hz)
  • Component:
    • PAL
    • NTSC
    • 480p (60 Hz)
    • 576p (50 Hz)
    • 720p (24 Hz, 25 Hz, 30 Hz, 50 Hz, 60 Hz)
    • 1080i (48 Hz, 50 Hz, 60 Hz)
    • 1080p (24 Hz, 25 Hz, 30 Hz, 50 Hz, 60 Hz)
  • Composite:
    • PAL
    • NTSC
  • Note: some video modes may be not supported ? it depends on the player mode, type of data being played back, and peculiarities of video hardware connected to the player.
